D718 Pinout, Equivalent Transistors, Features, Uses and More

D718 or 2SD718 is a TO-3P package NPN transistor, today we are going to discuss D718 pinout, equivalent transistors, features, uses and other important information about this transistor.

Advertisements

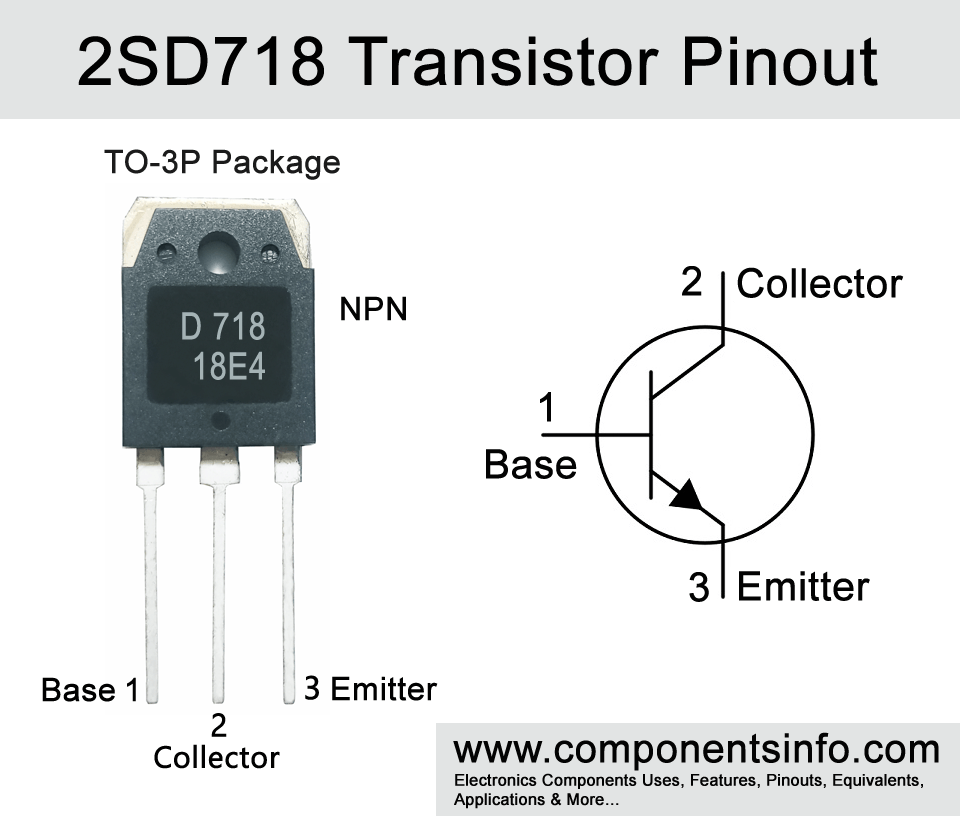

D718 Pinout, Equivalent Transistors, Features, Uses

Advertisements





Features / Technical Specifications:

  • Package Type: TO-220
  • Transistor Type: NPN
  • Max Collector Current(IC): 8A
  • Max Collector-Emitter Voltage (VCE): 120V
  • Max Collector-Base Voltage (VCB): 120V
  • Max Emitter-Base Voltage (VEBO): 5V
  • Max Collector Dissipation (Pc): 80 Watt
  • Minimum & Maximum DC Current Gain (hFE): 55 To 160
  • Max Storage & Operating temperature: -55 to +150 Centigrade



PNP Complementary:

PNP Complementary of 2SD718 is 2SB688.



Replacement and Equivalent:

2SD1046, 2SD1046D, 2SD1046E, 2SD910, 2SD979



D718 Transistor Explained / Description:

D718 is a TO-3P packaged NPN transistor made by many electronics components manufacturers. The transistor is designed to use in high power audio amplifier applications and capable to deliver output audio of 45 to 50 Watts. The max collector current of the transistor is 8A and the max collector to emitter voltage is 120V. The max collector dissipation is 80 Watts. The transistor is available two different gain values or hFE values which can be determined by the alphabet used right after the transistor number. If that alphabet is “R” then the hFE value of that transistor will be 55-110 and if it is “O” then the hFE value of the transistor will be 80-160.





Where We Can Use it & How to Use:

D718 is a TO-3P packaged NPN transistor made by many electronics components manufacturers. The transistor is designed to use in high power audio amplifier applications and capable to deliver output audio of 45 to 50 Watts. The max collector current of the transistor is 8A and the max collector to emitter voltage is 120V. The max collector dissipation is 80 Watts. The transistor is available two different gain values or hFE values which can be determined by the alphabet used right after the transistor number. If that alphabet is “R” then the hFE value of that transistor will be 55-110 and if it is “O” then the hFE value of the transistor will be 80-160.



Applications:

Simple high power audio amplifier

Stereo high power audio amplifier



How to Safely Long Run in a Circuit:

Using any electronic components under its absolute maximum ratings will not only make it perform stable but also increase its safety and working life in the circuit. Therefore we recommend to use a component atleast 20% below from its max ratings. The maximum collector-emitter voltage of the transistor is 120V therefore do not drive load of more than 96V. The maximum collector current of the transistor is 8A therefore do not drive load of more than 6.4A. Use a suitable heatsink with the transistor and always store of operate in temperature above -55 degrees centigrade and below +150 degrees centigrade.



Datasheet:

To download the datasheet just copy and paste the below link in your browser.

https://datasheetspdf.com/pdf-down/2/S/D/2SD718_UTC.pdf
