IRF630 Pinout, Equivalent, Features, Applications, Description and More

This article describes about IRF630 pinout, features, applications, description and more details on how and where to use this N channel MOSFET.

Advertisements

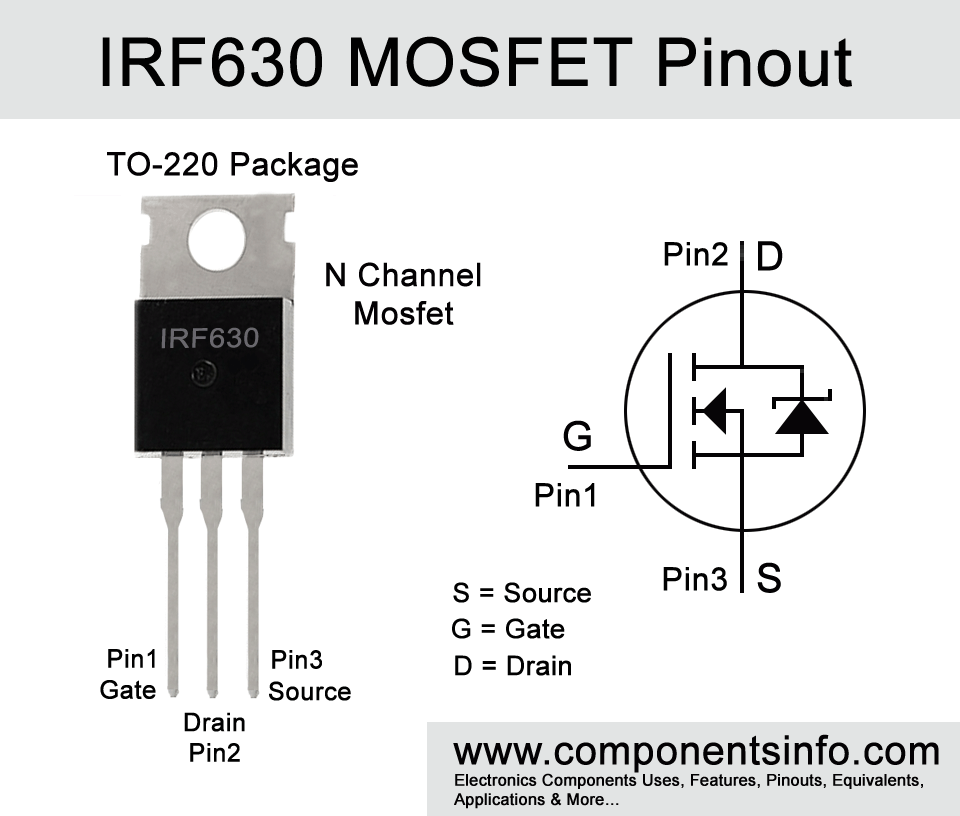

IRF630 Pinout, Equivalent, Features, Applications, Description and More

Advertisements



Features / Technical Specifications

  • Package Type: TO-220 And Other Packages
  • Transistor Type: N Channel
  • Max Voltage Applied From Drain to Source: 200V
  • Max Gate to Source Voltage Should Be: ±20V
  • Max Continues Drain Current is : 9A
  • Max Pulsed Drain Current is: 36A
  • Max Power Dissipation is: 75W
  • Minimum Gate Threshold Voltage is: 2V to 4V
  • Max Storage & Operating temperature Should Be: -55 to +150 Centigrade



Replacement and Equivalent

BUK454-200A, BUK454-200B, 2SK1957, 2SK2212, BUK444-200A, BUK444-200B, IRFI630G, IRFS630, IRFS631, RFP2N18, YTA630, 2SK1957.



IRF630 MOSFET Explained / Description

IRF630 is an N channel MOSFET manufactured in TO-220 and other packages. The transistor is designed for applications which require high speed switching and it is capable of delivering switching speed in nano seconds.

The transistor is also capable to drive load of upto 200V with upto 9A current and in pulse mode it can drive load of upto 36A for a time period of 300uS or 300 microseconds with duty cycle of 2%. Moreover the transistor also has low on state resistance between drain and source which result in low power loss.

Beside its uses as a switch it can also be used as an amplifier to build high power amplifiers.



Advertisements



Where We Can Use it & How to Use

IRF630 can be used in applications in which high switching speed is required. Other than that it can also be used in any general application that falls under its specifications. It is also suitable for audio amplification and can be used to build high power audio amplifiers. The procedure of using this transistor in circuit is same as you use any other MOSFET.



Applications

Battery Chargers

Solar power supply applications

Applications that require fast switching

Motor Drivers

UPS

Telecommunication Applications

Driving load at the output of Arduino and other platforms

High voltage switching under 200V



How to Get Long Life Performance

To get long term performance with this transistor it is suggested to always use it atleast 20% below from its maximum ratings. The max drain to source voltage is 200V therefore do not drive load of more than 160V. The max continuous drain current is 9A therefore do not drive load of more than 6.2A and always use a suitable heatsink with the transistor. Do not store and operate the transistor in temperature below -55 degree centigrade and above +150 degree centigrade.



Datasheet

To Download the datasheet just copy and paste the below link in your browser.

https://cdn.datasheetspdf.com/pdf-down/I/R/F/IRF630_IntersilCorporation.pdf
