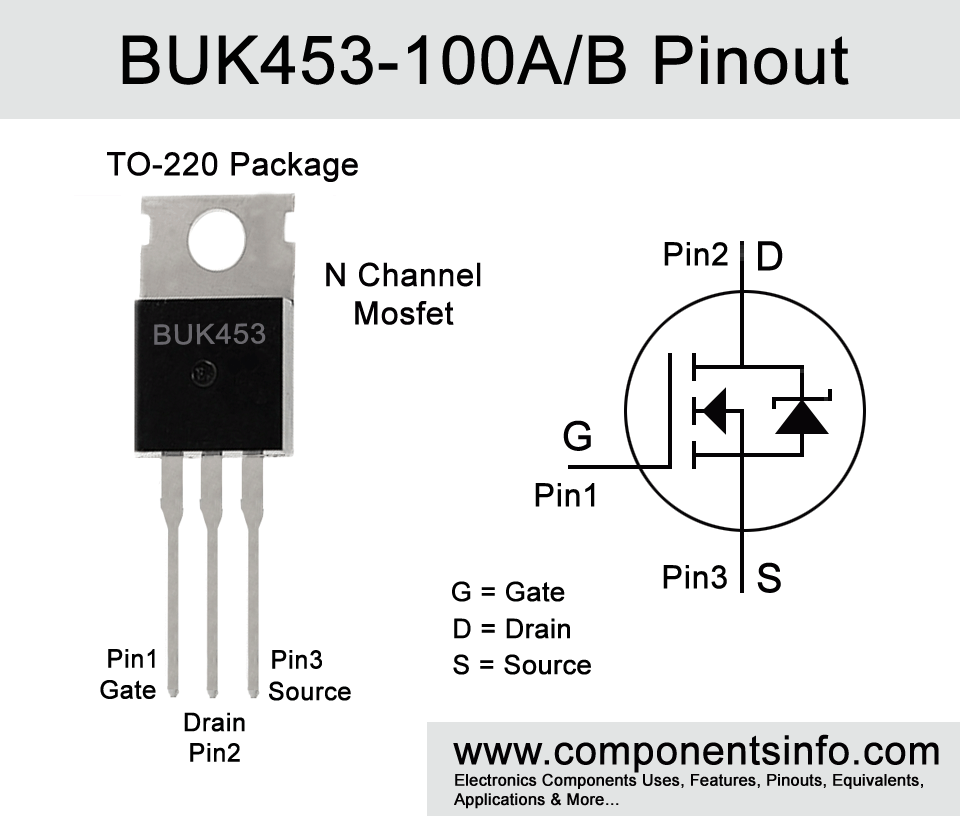

BUK453-100A/B Transistor Pinout, Equivalent, Explanation and Other Info

BUK453-100 is an N Channel MOSFET transistor available in two different versions which are BUK453-100A and BUK453-100B, in this post we are going to discuss about BUK453-100A/B transistor pinout, equivalent, explanation and other info about this transistor.

Features / Technical Specifications

• Package Type: TO-220, TO220AB, TO-220C
• Transistor Type: N Channel MOSFET
• Max Voltage Applied From Drain to Source: 100V
• Max Gate to Source Voltage: ±30V
• Max Continues Drain Current of BUK453-100A is : 14A
• Max Continues Drain Current of BUK453-100B is : 13A
• Drain to Source Resistance in ON State: 200 Ohms
• Max Pulsed Drain Current of BUK453-100A is: 56A
• Max Pulsed Drain Current of BUK453-100B is: 52A
• Max Power Dissipation is: 75W
• Max Storage & Operating temperature Should Be: -55 to +175 Centigrade

BUK453-100A/B MOSFET Explained / Description

BUK453-100 is an N channel MOSFET transistor available in TO-220, TO-220AB and TO-220C packages. BUK453-100 MOSFET transistor is primarily designed for high speed and general purpose switching and can be used in wide variety of switching applications. Other than that it can also be used in amplification purposes such as in stages of high power audio amplifiers.

The transistor is available in two different versions which are BUK453-100A and BUK453-100B both versions are slightly different from each other but can be used in the place of each other.

The maximum drain current of the “100A” version is 14A while the other version’s “100B” maximum drain current is 13A. The maximum drain to source voltage of both versions is 100V and the maximum power dissipation of both is 75 Watts. Additionally the  maximum gate to source voltage of both versions is also same which is ±30V.

Where We Can Use it & How to Use

BUK453-100 can be used for wide variety of switching purposes for example it can be used to drive and control motors, SM Power supplies, AC to AC, DC to DC and AC to DC converter circuits, other than that it can be used for variety of switching applications or driving load under its capabilities. Moreover it can also be used to build high power audio amplifiers.

Replacement and Equivalent

IRF530, IRF530S, BUZ20, BUZ72, MTP12N10E, RFP12N10, STP13N10, STP18N10, 2SK3158, 2SK3479, 2SK1116, 2SK1347

Applications

Battery Charger Circuits

Uninterrupted Power Supply Circuits

BMS Circuits

Switching Regulator Circuits

Solar Applications

Audio Amplifiers

Motor Driver Applications

And Variety of Switching Applications

How to Safely Long Run in a Circuit

For safe operations and to get long term performance with this transistor use it 20% below from its absolute maximum ratings. The maximum drain to source current is 13A to 14A therefore do not drive load of more than 10.4A. The maximum drain to source voltage is 100V hence do not drive load of more than 80V. Use a suitable heatsink with the transistor and always store of operate the device in temperature above -55°C and below +175 °C.

Datasheet

To Download the datasheet just copy and paste the below link in your browser.

https://cdn.datasheetspdf.com/pdf-down/B/U/K/BUK453-100A_PhilipsSemiconductors.pdf
