IRFB4110 MOSFET Pinout, Specs, Equivalent, Applications and Other Info

In this post we are going to discuss about IRFB4110 MOSFET pinout, specs, equivalent, applications, where and how to use it and other useful information about this N channel transistor.

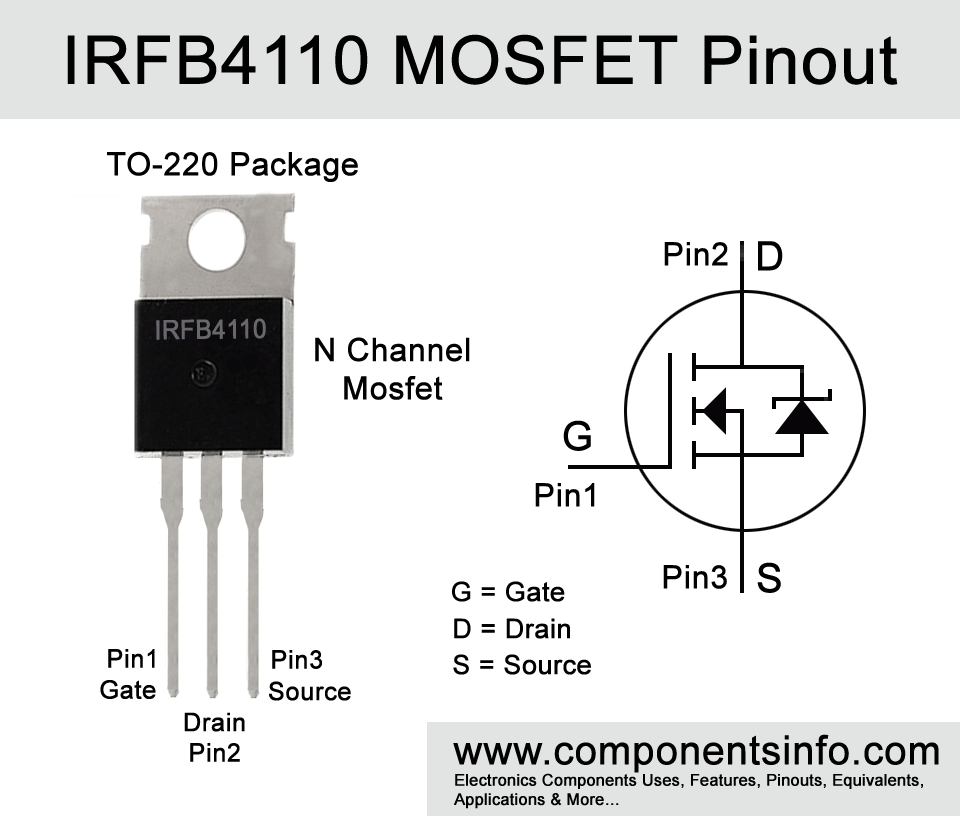

IRFB4110 MOSFET Pinout, Specs, Equivalent, Applications



Features / Technical Specifications:

  • Package Type: TO-220AB
  • Transistor Type: N Channel
  • Max Voltage Applied From Drain to Source: 100V
  • Max Gate to Source Voltage Should Be: ±20V
  • Max Continues Drain Current is : 180A
  • Max Pulsed Drain Current is: 670A
  • Max Power Dissipation is: 370W
  • Max Drain to Source Resistance in ON State (RDS on): 4.5mΩ
  • Max Storage & Operating temperature Should Be: -55 to +175 Centigrade


Replacement and Equivalent:



IRFB4110 Transistor Explained / Description:

Are you looking for a highly efficient MOSFET to use in your SMPS and UPS Systems then the IRFB4110 might be a good choice for you. IRF4110 is an N channel MOSFET available in TO-220AB package. The transistor has many features and benefits such has it has better gate, better dynamic dv/dt ratings, fully characterized capacitance etc.

Looking at the other capabilities, the transistor possesses high switching speed which makes it ideal to use in applications where high speed switching is an essential requirement. The maximum continuous drain current of 180A also makes it an ideal MOSFET to use in applications where the designer wants to drive high amount of load. Moreover the maximum junction temperature of 175°C makes it capable to deliver more power when its temperature is high as compare to low temperature MOSFETS.

The transistor has quite interesting specs, the maximum drain to source voltage is 100V, maximum continuous drain current is 180A and the maximum pulsed drain current is 670A and the total power dissipation of the transistor is 370W.

The primary applications for this MOSFET are UPS, high speed switching circuits, high frequency applications, hard switch etc. But it can also be used for wide variety of other applications.


Where We Can Use it & How to Use:

As discussed above IRFB4110 is designed to use in variety of small and big uninterruptible power supply circuits, switch mode power supplies etc. but it is not limited to these uses and can be used in variety of other power supply and battery charging circuits. The complete applications list mentioned below under Application heading.



Power Supplies

Uninterruptible Power Supplies

Battery Charger Circuits

BMS Circuits

Solar Chargers & Power Supplies

Inverter Circuits


Safe Operating Guidelines / Absolute Maximum Ratings:

Follow these operating guidelines to get long term performance with IRFB4110 MOSFET. First of all do not use the transistor to its absolute maximum ratings and always use it 20% below from its absolute max ratings. The maximum continuous drain current is 180A, therefore do not drive load of more than 144A, the maximum drain to source voltage is 100V so do not drive load of more than 80V. Use a suitable heatsink with the transistor and always store or operate the transistor at temperature above -55 ° C and below +170 ° C.



To Download the datasheet just copy and paste the below link in your browser.
