2N5459 Transistor Pinout, Equivalent, Applications and Other Details

This article describes 2N5459 transistor pinout, equivalent, applications and other details about how to and where to use this N Channel JFET.

Advertisements

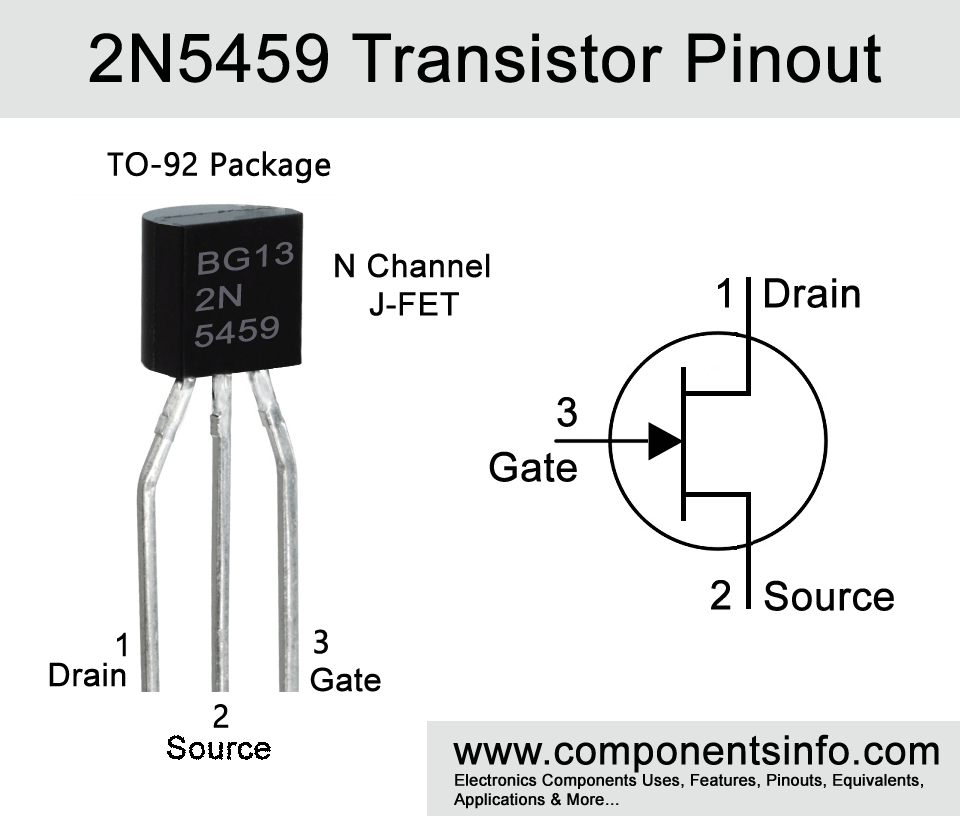

2N5459 Transistor Pinout, Equivalent, Applications and Other Details

Advertisements



Features / Technical Specifications:

  • Package Type: TO-92
  • Transistor Type: N Channel
  • Maximum Voltage From Drain to Source: 25V
  • Maximum Drain to Gate Voltage: 25V
  • Maximum Reverse Gate to Source Voltage: –25V
  • Maximum Continues Gate Current: 10mA
  • Minimum to Maximum Gate to Source Cutoff Voltage : 2.0 to 8.0
  • Maximum Power Dissipation can be achieved: 310mW
  • Max Storage & Operating temperature Should Be: -55 to +150 Centigrade
  • Low Noise & High Gain Capabilities



Replacement and Equivalent:

MPF102, 2N5457, 2N5458, J201, NTE312, 2N3819, 2N5638, 2N5640, 2SK162, 2SK518 (The pin configuration of the substitute transistors mentioned here may different from 2N5459. Therefore always check pin configuration of the transistor you are replacing.)



2N5459 Transistor Explained / Description:

2N5459 is an N Channel JFET transistor; the transistor is manufactured to use in general purpose applications such as switching and amplification. The transistor possesses some of very good low noise and high gain features which make it ideal to use in applications were a user want to amplify a low gain signal to high gain with good noise filtrations at the output. Other than that it can also be used to amplify any type of general purpose audio and other signal amplification. This transistor can also be used as a switch and the max load the user can drive is 10mA.



Advertisements



Where We Can Use it & How to Use:

As mentioned above 2N5459 transistor can be used in circuits where low noise and high gain signal amplification is required. So the transistor can be used in audio preamplifiers, audio amplifier stages, sound detector circuits, variety of light sensor circuits etc. Moreover this transistor can also be used as a switch and the max load user can drive is 10mA.



Applications:

Audio Preamplifiers

Audio Amplifiers

Variety of Sensor Applications

Amplification of any type of low gain signals



How to Safely Long Run in a Circuit:

For long term stability and performance of a component we always suggest using it atleast 20% below from its maximum ratings, therefore same goes with the 2N5459 transistor. The maximum drain to source voltage is 25V therefore do not drive load of more than 20V. The maximum continuous gate current is 10mA therefore do not drive load of more than 8mA and always operate this transistor in temperature above -55 degree centigrade and below +150 degree centigrade.



Datasheet:

To Download the datasheet just copy and paste the below link in your browser.

https://cdn.datasheetspdf.com/pdf-down/2/N/5/2N5459_FairchildSemiconductor.pdf
