IRLB8721 Transistor Pinout, Equivalent, Features, Applications, Explanation

IRLB8721 or IRLB8721PbF is an N channel power MOSFET device. In this post you will find IRLB8721 transistor pinout, equivalent, features, applications, explanation and where to use it.

Advertisements

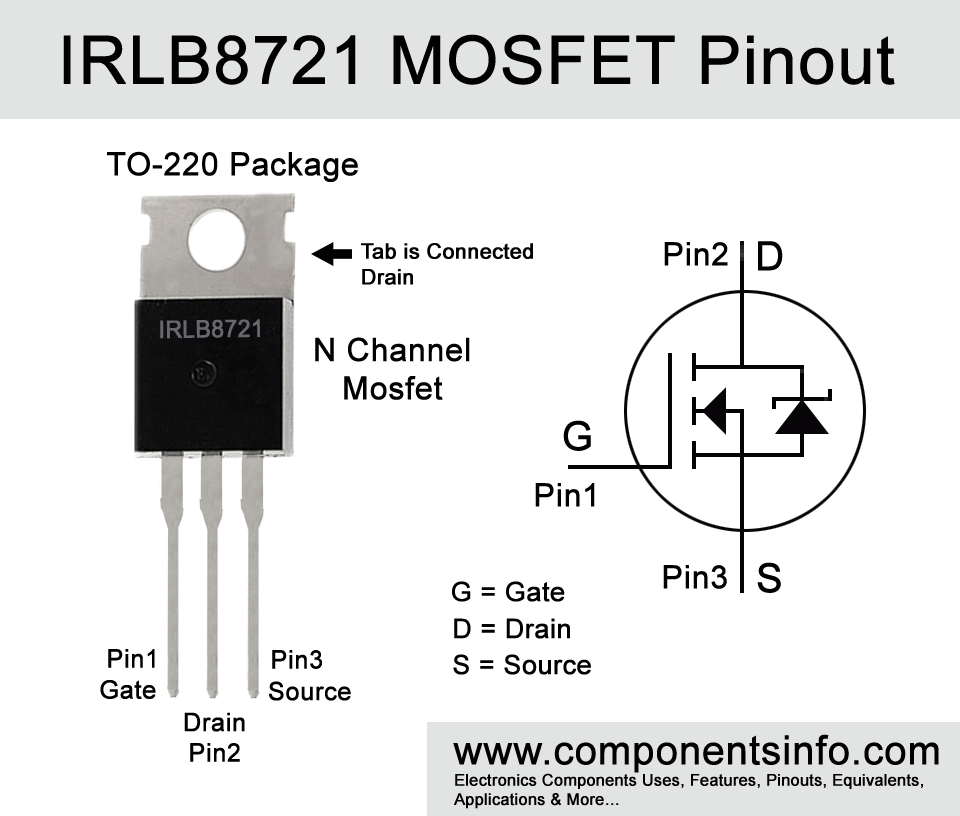

IRLB8721 Transistor Pinout, Equivalent, Features, Applications, Explanation

Advertisements



Features / Technical Specifications:

  • Package Type: TO-220
  • Transistor Type: N Channel MOSFET
  • Max Voltage Applied From Drain to Source: 30V
  • Max Gate to Source Voltage: ±20V
  • Max Continues Drain Current is : 62A
  • Drain to Source Resistance in ON State: 8.7m Ω@VGS = 10V
  • Max Pulsed Drain Current is: 250A
  • Max Power Dissipation is: 65W
  • Max Storage & Operating temperature Should Be: -55 to +175 Centigrade



Replacement and Equivalent:

2SK3430,IRF2804, 2SK3228, IRF1407, 2SK3354, IRF1607, 2SK3510, IRF3205, IRF3305, IRF3805, IRFB3004, IRFB3006, MT3203, IRFB3206, IRLB8743, IRFB3256, IRLB3813, IRLB3034, IRFB4110, IRL8113, IRFB7430, IRFB4310, IRFB7440



IRLB8721 Transistor Explained / Description:

IRLB8721 or IRLB8721PbF is an N channel power MOSFET available in TO-220 transistor package. The device is primarily designed for UPS, H.F Buck Converters, H.F DC to DC converters used in telecommunication and also industrial usage. But it can also be used in variety of other general purpose applications and can be directly operated with the integrated circuits or from electronic platforms like arduino and raspberry pi.

The transistor has many build in features which are fast switching speed which makes it ideal to use in applications where fast switching is crucial. The static to drain resistance in ON state is only 8.7m Ω, 100% avalanche tested, ultra low gate impedance etc.

The transistor also has quite interesting specs, the maximum drain to source voltage is 30V, maximum continuous drain current is 62A, maximum plused drain current is 250A and maximum power dissipation is 65W.



Where We Can Use it & How to Use:

IRLB8721 is primarily designed to use in applications like uninterruptible power supplies, DC to DC converters, Buck converters. But it can also be used in many other general purpose applications.

If you are looking for a reliable transistor that drive variety of loads directly from the ICs or electronic platforms than IRLB8721 can be an ideal transistor. It can be used to drive and control DC motors, can be used in solar applications, battery charging applications, DC power supplies and many other applications. Additionally it can also be used to build high power audio amplifiers.



Applications:

UPS Circuits

DC Power Supplies

Battery Charger Circuits

BMS Circuits

Solar Battery Chargers

Motor Drivers

And Variety of Switching Applications



Safe Operating Guidelines / Absolute Maximum Ratings:

For safe operating the transistor the user must follow these guidelines. Do not use the transistor on its absolute maximum ratings, for long term good performance use it 20% below from its absolute maximum ratings. The maximum continuous drain current is 62A so do not drive load of more than 49.6A, the maximum drain to source voltage is 30V therefore do not drive load of more than 24V. Use a suitable heatsink with the transistor and always store or operate the transistor in temperature above -55°C and below +175 °C.



Datasheet:

To Download the datasheet just copy and paste the below link in your browser.

https://cdn.datasheetspdf.com/pdf-down/I/R/L/IRLB8721PBF_InternationalRectifier.pdf
