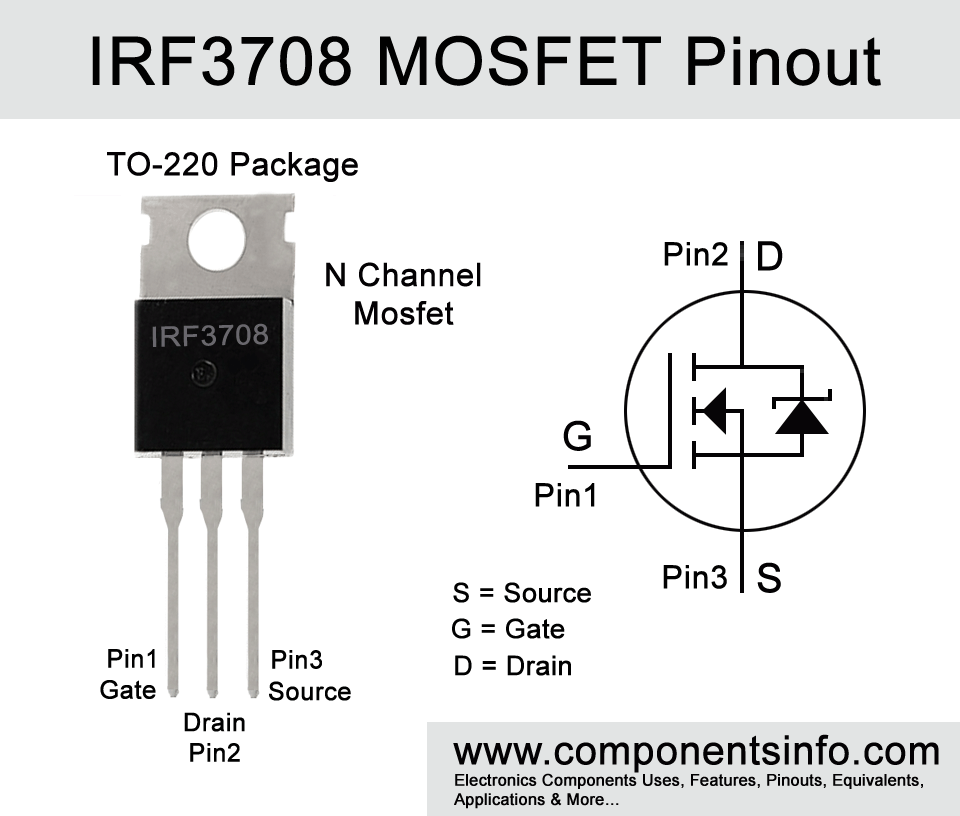

IRF3708 Pinout, Equivalent, Applications, Features

Today we are doing to discuss about IRF3708 pinout, equivalent, applications, features and other important info about this N channel MOSFET.

Advertisements

Advertisements



Features / Technical Specifications

  • Package Type: TO-220, TO-220AB And Other Packages
  • Transistor Type: N Channel
  • Max Voltage Applied From Drain to Source: 30V
  • Max Gate to Source Voltage Should Be: ±20V
  • Max Continues Drain Current is : 62A
  • Drain to Source Resistance in ON State: 12mΩ
  • Max Pulsed Drain Current is: 248A
  • Max Power Dissipation is: 87W
  • Max Storage & Operating temperature Should Be: -55 to +175 Centigrade



Replacement and Equivalent

IRF3708PBF, AM90N03-08P, BUK9506-55A, CS100N03_B8



IRF9640 MOSFET Explained / Description

IRF3708 is an N channel SMPS MOSFET available in TO-220 and other packages. The continuous drain current of the transistor is 62A and the maximum drain to source voltage is 30V. The pulsed drain current of the transistor is quite high that is 248A due to which this transistor can be used in applications where high pulsed current is expected or required.

IRF3708 can be used for verity of general purpose switching purposes and it can also be used in applications that require high speed switching. Moreover it can also be used in DC to DC converters and buck converters.

Other than that it can be used for audio amplification and in variety of audio amplification stages.



Advertisements



Where We Can Use it & How to Use

As discussed above IRF3708 can be used in any general purpose switching and amplification application purposes but in some areas it will perform better such as in DC to DC converters and buck converters.



Applications

Uninterrupted Power Supplies

Switching Regulators

DC to DC and Buck Converters

Battery Chargers

Solar Applications

Motor Drivers

Audio Amplification



How to Safely Long Run in a Circuit

To get long term performance with any component we always suggest to not use a component to its maximum ratings and always use it 20% below from its maximum ratings therefore same goes with the IRF3708 MOSFET, the maximum continuous drain current of the transistor is 62A therefore do not drive load of more than 49.6A. The maximum drain to source voltage is 30V therefore do not drive load of more than 24V. Moreover the max pulse drain current is 248A therefore do not drive max load of more than 198.4 in pulse. Use a suitable heatsink with the transistor and always store and operate the transistor in temperature above -55 degree Celsius and below +175 degree Celsius.



Datasheet

To Download the datasheet just copy and paste the below link in your browser.

https://cdn.datasheetspdf.com/pdf-down/I/R/F/IRF3708_InternationalRectifier.pdf
