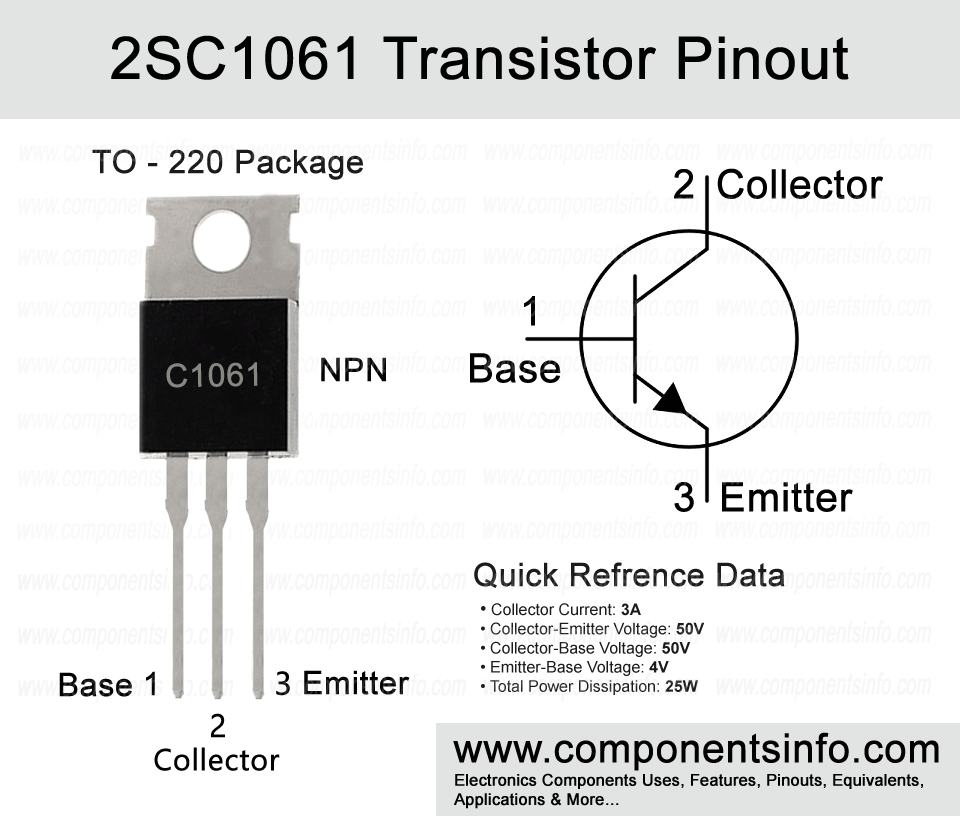

2SC1061 Transistor Pinout, Applications, Equivalents, Features and Other Details

C1061 which has full name 2SC1061 is a NPN power transistor available in TO-220 package, designed to be used in low frequency power amplifiers, the post below explains 2SC1061 transistor pinout, applications, equivalents, features and other details about this device.



Absolute Maximum Ratings:

• Package Type: TO-220
• Transistor Type: NPN
• Max Collector Current(I_C): 3A
• Max Collector-Emitter Voltage (V_CE): 50V
• Max Collector-Base Voltage (V_CB): 50V
• Max Emitter-Base Voltage (VEBO): 4V
• Total Power Dissipation (PC): 25 Watts
• Max Transition Frequency (fT): 5 MHz
• Minimum & Maximum DC Current Gain (h_FE): 35 – 320
• Max Storage & Operating temperature Should Be: -55 to +150 Centigrade



PNP Complementary:

PNP Complementary 2SC1061 is 2SA671.



Replacement and Equivalent:

BD809, BD801, BD797, BD243A/B/C,  BD241, 2SD823, 2SD935, 2SD923, 2SD1907R/S, 2SD1905R/S, 2SD1902R/S, 2SD1524, 2SD1466, 2SD1238, 2SC4600, 2SC4063, 2SC3851A, 2SC3284 , 2SC2706, 2SC2580.



2SC1061 Transistor Explained / Description:

2SC1061 is a NPN power transistor available in TO-220 package. The transistor is designed to be used in low frequency power amplifiers. A low frequency power amplifier is an application that is specially designed to amplify signal of low frequencies for example from 20Hz to 20KHz. These type of amplifiers are mostly used in audio amplification systems and can also be used many other applications.

Looking at the absolute maximum ratings of the transistor collector-emitter voltage is 50V, collector-base voltage is also 50V, continuous collector current is 3A, peak collector current is 8A, emitter-base voltage is 4V, continuous base current is 0.5A, power dissipation is 25W, junction temperature is 150°C and storage temperature us from -55°C to 150°C.

Some electrical charactersics of the transistor are collector-emitter saturation voltage eis 1V, base-emitter ON voltage is 1.5V, DC current gain is 35 to 320 and transistor frequency is 5MHz.



How to Use This Transistor:

2SC1061 is a NPN power transistor available in TO-220 package. The transistor is designed to be used in low frequency power amplifiers. A low frequency power amplifier is an application that is specially designed to amplify signals of low frequencies for example from 20Hz to 20KHz. These type of amplifiers are mostly used in audio amplification systems and can also be used in many other applications.



Applications:

Low Frequency Power Amps

Audio Systems

Switching Circuit

Power Amplifiers

Motor Drivers

And Other General Purpose Circuits



Safe Operating Guidelines:

To safely operate the transistor follow these guidelines:

• Do not use the transistor to its absolute max ratings, and stay at least 20% below from these ratigns.
• Check pinout before using in your application.
• Always use a suitable heatsink with the transistor.
• Always operate the transistor under these temperature limitis -50°C to 150°C.:
• While operating the transistor make sure to stay in these temperature limits -50°C to 150°C.



Datasheet:

To download the datasheet just copy and paste the below link in your browser.

https://www.alldatasheet.com/datasheet-pdf/view/1090560/NJSEMI/2SC1061.html
