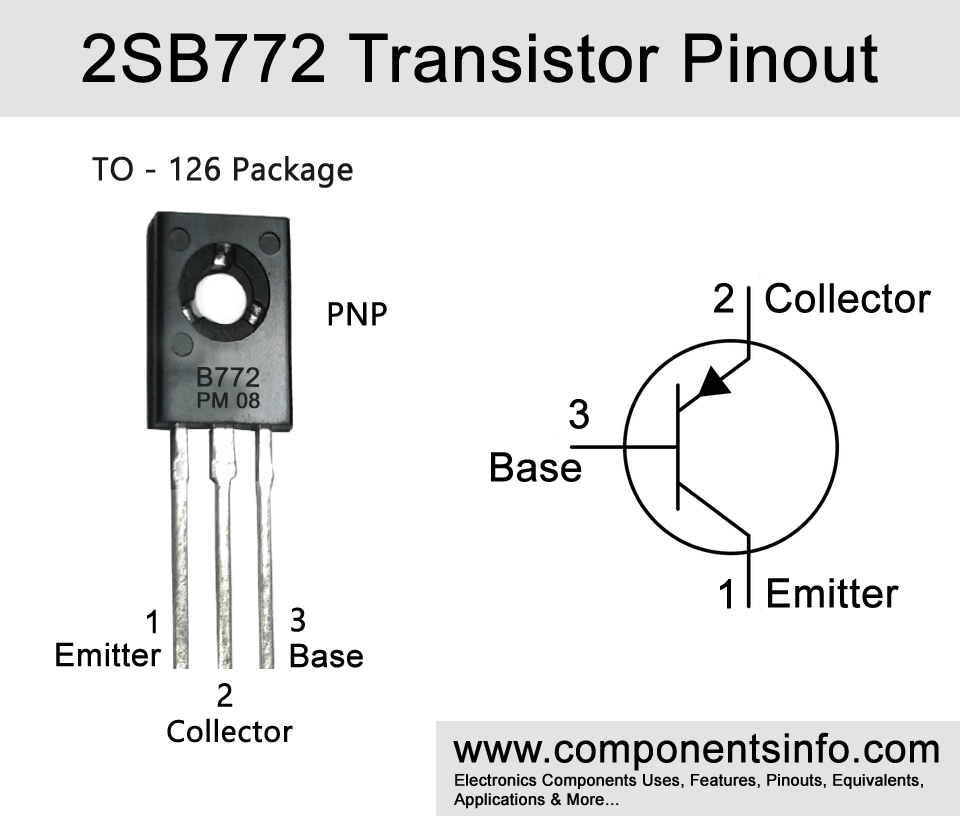

2SB772 Transistor Pinout, Equivalent, Uses, Features

B772 or 2SB772 is a TO-126 package general purpose transistor; in this post you will find 2SB772 transistor pinout, equivalent, uses, features and other useful information about this transistor.

Advertisements

2SB772 Transistor Pinout, Equivalent, Uses, Features

Advertisements



Features / Technical Specifications:

  • Package Type: TO-126
  • Transistor Type: NPN
  • Max Collector Current(IC): –3A
  • Max Collector-Emitter Voltage (VCE): –30V
  • Max Collector-Base Voltage (VCB): –40V
  • Max Emitter-Base Voltage (VEBO): –5V
  • Max Collector Dissipation (Pc): 10 Watts
  • Max Transition Frequency (fT): 90 MHz
  • Minimum & Maximum DC Current Gain (hFE): 60 – 400
  • Max Storage & Operating temperature Should Be: -55 to +150 Centigrade



Replacement and Equivalent:

MJE172, KSB772, 2N6407, 2SA715, 2SA738, 2N6414, 2N6415, 2SA963 2SB743, 2SB744, 2SB772, BD788, BD816, BD826, BD386, BD386-1, BD386-2, BD386-5, BD386-8, BD388, BD828, BD834, BD836, KSB744, KSB744A, KSB772, MJE170, MJE171, MJE230, MJE231, MJE232, MJE233, MJE234.



2SB772 Transistor Explained / Description:

2SB772 is a TO-126 packaged general purpose PNP transistor that can be used for variety of switching and audio amplification purposes. When used as a switch it can drive load of upto 3A and can be used to drive variety of loads in circuits. Moreover the collector-emitter saturation voltage is only 0.3V which also makes this transistor ideal to use in places where low voltage switching is required.

On the other its 60-400 DC current gain and 10W collector dissipation features makes it ideal to use in variety of audio amplification purposes, it can be used in audio amplifier stages and also perform well as a separate amplifier to drive a speaker.



Advertisements



Where We Can Use it & How to Use:

As described above 2SB772 can be used in variety of applications, it can drive maximum load of 3A or 3000mA due to which it can be used in your circuits to drive variety of loads at a time. Like high power DC motors, LEDs, relays, switches, whole part of a circuit etc. Other than that it can also be used to build a high power audio amplifier and can also be used at the output of radios, bell / chimes, mp3 players to drive a speaker directly.



Applications:

DC to DC Converters

Relay Driver

Audio Amplifier

Audio Amplifier Stages

Switching Loads under 3A



How to Safely Long Run in a Circuit:

To get good and long term performance from 2SB772 always stay atleast 20% below from its max ratings. The maximum collector current of the transistor is 3A therefore do not drive load of more than 2.4A. The maximum collector-emitter voltage is 30V, for safety do not drive load of more than 24V. Use a suitable heatsink with the transistor and always store of operate in temperature between -55 Celsius to +150 Celsius.



Datasheet:

To Download the datasheet just copy and paste the below link in your browser.

https://cdn.datasheetspdf.com/pdf-down/2/S/B/2SB772_NEC.pdf
