2SA992 Transistor Pinout, Equivalents, Applications, Features and Other Details

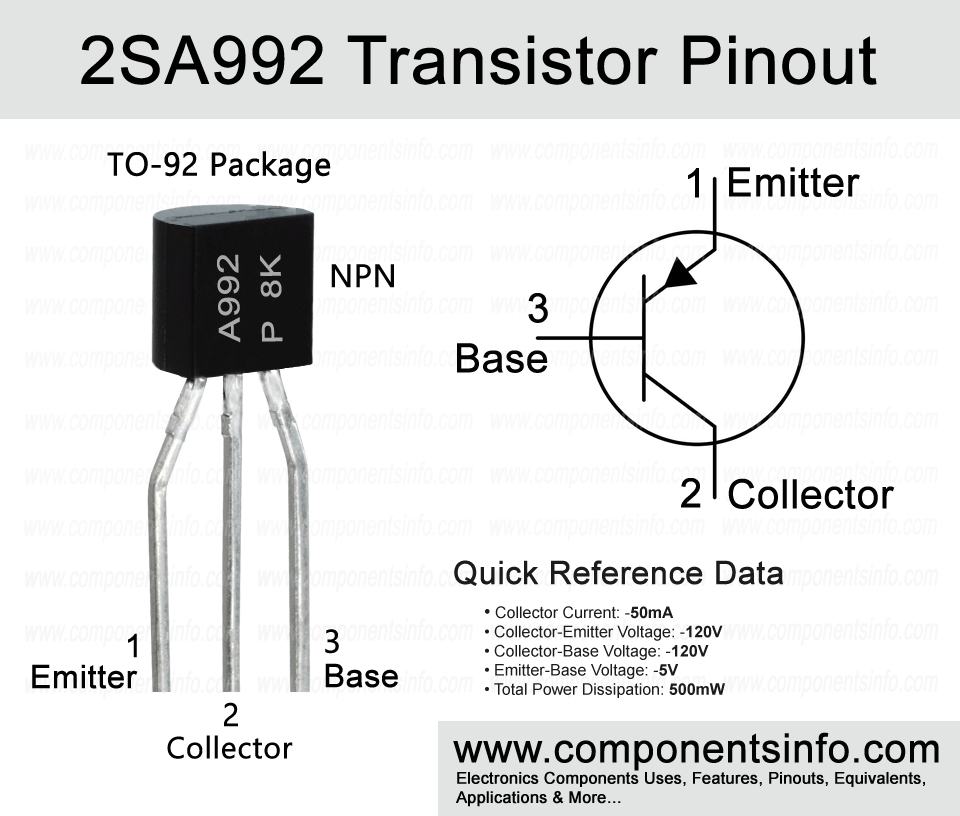

In this post I am going to discuss a very interesting transistor designed to be used in power amplifiers, stereo amplifier, and etc. but due its good specs it can also be used in variety of other applications. This post contains 2SA992 transistor pinout, equivalents, applications, features and other details about this component.
Absolute Maximum Ratings:
- Package Type: TO-92
- Transistor Type: PNP
- Max Collector Current(IC): -50mA
- Max Collector-Emitter Voltage (VCE): -120V
- Max Collector-Base Voltage (VCB): -120V
- Max Emitter-Base Voltage (VBE): -5V
- Max Collector Dissipation (Pc): 500 mW
- Max Transition Frequency (fT): 50 to 100 MHz
- Minimum & Maximum DC Current Gain (hFE): 150 to 800
- Max Storage, Operating & Junction temperature range: -55 to +150 Centigrade
NPN Complementary:
NPN complimentary of 2SA992 is 2SC1845
Replacement and Equivalent:
2SB1212, 2SB1387, KTA1268, 2SA988, 2SA1285
2SC2238 Transistor Explained / Description:
2SC2238 is a quite interesting transistor with some very good features. It is an NPN power transistor available in TO-220 package. Features of the transistor are high collector-emitter voltage, high transition frequency of upto 100MHz, good power dissipation, good linearity and availability of its complimentary pair.
Looking at the absolute maximum ratings of the transistor, the collector-emitter voltage is 160V, collector current is 1.5A, collector-base voltage is also 160V, emitter-base voltage is 5V, continuous emitter current is also 1.5A, total power dissipation is 25W, junction temperature is 150°C and storage temperature is -55°C to 150°C.
The transistor is designed to be used in power amplifier and driver stage of amplifiers but due to its good characteristics it can also be used in variety of general purpose applications and also in RF applications.
2SC2238 is also available in two more versions which are 2SC2238A and 2SC2238B which are slightly different from 2SC2238 in voltages. These two versions works on higher voltages than 2SC2238.
How to Use This Transistor:
It is a bipolar junction transistor (BJT) therefore the using procedure is same as we use any other BJT by applying signals to its base, applying negative voltage to its emitter and taking the output from its collector pin.
Applications:
Low noise audio amplification
Low Gain Signal Amplification
Audio Preamplifiers
Radio and RF Applications
Switching Load Under 50mA
Safe Operating Guidelines:
Please follow these safety guidelines when using this transistor:
To get long term and better performance with any transistor do not use it at its absolute maximum ratings and always stay at least 20% below. Moreover, the temperature range should be between -55°C and below +150 °C.
Datasheet:
To download the datasheet just copy and paste the below link in your browser.
https://www.alldatasheet.com/datasheet-pdf/view/83330/NEC/2SA992.html
