IRF9640 Pinout, Equivalent, Features, Applications and Other Details

IRF9640 is a P channel MOSFET, in this post we are going to discuss IRF9640 pinout, equivalent, features, applications and other details about this transistor.

Advertisements

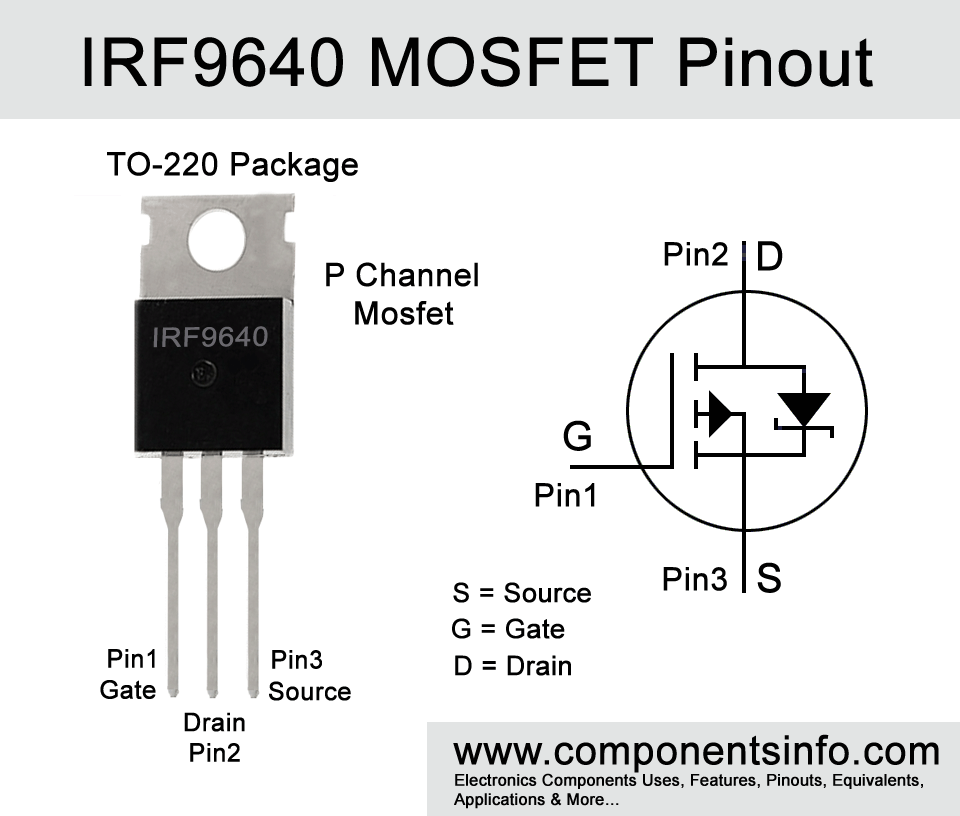

IRF9640 Pinout, Equivalent, Features, Applications and Other Details

Advertisements



Features / Technical Specifications

  • Package Type: TO-220, TO-220AB And Other Packages
  • Transistor Type: P Channel
  • Max Voltage Applied From Drain to Source: –200V
  • Max Gate to Source Voltage Should Be: ±20V
  • Max Continues Drain Current is : –11A
  • Drain to Source Resistance in ON State: 0.5 Ohms
  • Max Pulsed Drain Current is: –44A
  • Max Power Dissipation is: 125W
  • Max Storage & Operating temperature Should Be: -55 to +150 Centigrade



Replacement and Equivalent

2SJ513, CEP14P20, IRF9640PBF, 9640S, IRFP9240, MTW14P20



IRF9640 MOSFET Explained / Description

IRF9640 is a P channel MOSFET manufactured in TO-220 and other packages. The continuous drain current of the transistor is -11A therefore you it can drive maximum load of -11A through the transistor with the maximum load voltage of -200V. The transistor can be used for wide variety of switching and amplification purposes. It is also capable to deliver fast switching speed hence can be used in applications where fast switching is crucial. The drain to source resistance of the transistor is 0.500. The minimum the source resistance the lesser power is waste which makes the transistor power efficient. Moreover the transistor has low driving requirements which make it capable to be derived directly from ICs, microcontrollers and electronic platforms such as Arduino.



Advertisements



Where We Can Use it & How to Use

IRF9640 can be used for verity of general purpose requirements that falls under its characteristics. Other than that it can also be used for fast switching requirements and also in audio amplifier application. Using this MOSFET is pretty much same as you use any other general purpose MOSFET.



Applications

Switching Regulators

Uninterrupted Power Supplies

Battery Chargers

Solar Applications

Motor Drivers



How to Safely Long Run in a Circuit

For long term performance with this device use it 20% below from its maximum ratings. The maximum continues drain current -11A therefore do drive load of more than -8.8A. The maximum drain to source voltage is -200V therefore do not drive load of more than -160V, use a suitable heatsink with this transistor and always store or operate the transistor in temperature above -55 degree Celsius and below +150 degree Celsius.



Datasheet

To Download the datasheet just copy and paste the below link in your browser.

https://cdn.datasheetspdf.com/pdf-down/I/R/F/IRF9640_InternationalRectifier.pdf
