C3203 Transistor Pinout, Equivalent, Features, Applications and Other Important Info

C3203 full part number 2SC3203 is an NPN transistor available in TO-92 package. This article contains C3203 transistor pinout, equivalent, features, applications and other important info about this transistor.

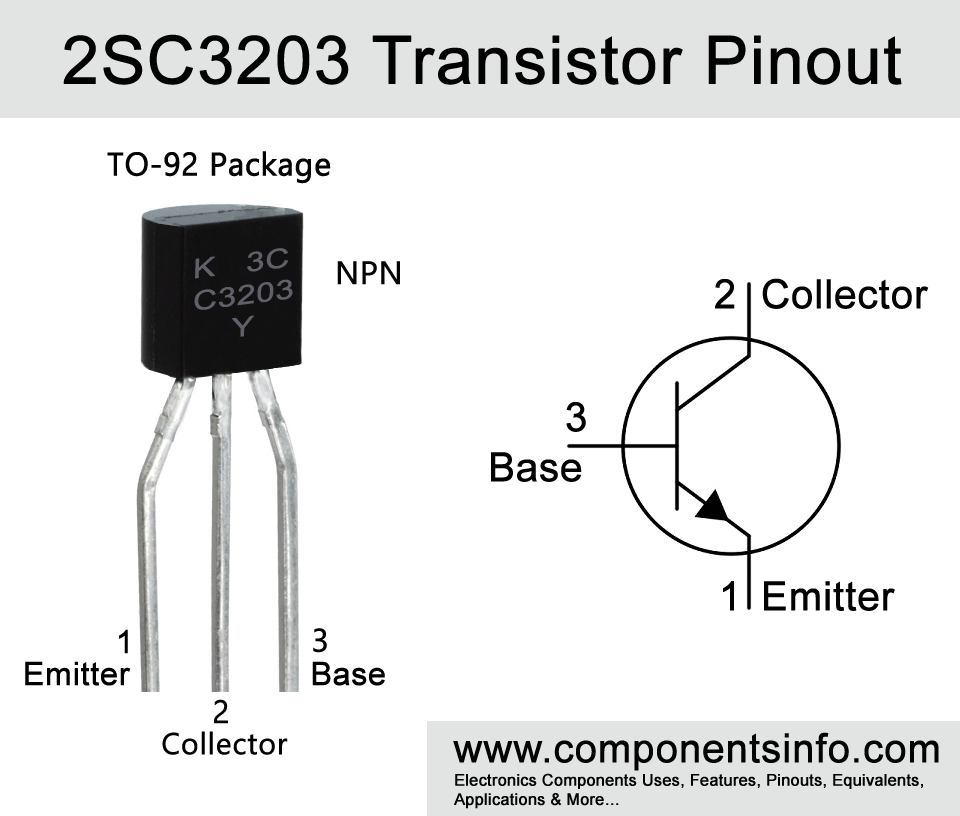

C3203 Transistor Pinout, Equivalent, Features, Applications and Other Important Info




Features / Technical Specifications

  • Package Type: TO-92
  • Transistor Type: NPN
  • Max Collector Current (IC): 800mA
  • Max Collector-Emitter Voltage (VCEO): 35V
  • Max Collector-Base Voltage (VCBO): 30V
  • Max Emitter-Base Voltage (VEBO): 5V
  • Collector Power Dissipation (PC): 600 mW
  • DC Current Gain (hFE): 25 to 240
  • Max Storage, Operating & Junction temperature range: -55 to +150 Centigrade


PNP Complementary

PNP Complementary of 2SC3203 is 2SA1271


Replacement and Equivalent

KTC1008, KTC3210, 2SC3940A, 2SD1347, 2SD789, ZTX455, ZTX451, ZTX449, KTC8050, KTC3203, KTC1006, JE9113A, JE8050, CN450, C168, BC337, 2SC3228, 2SD863, 2SD893A, KTC3205


C3203 Transistor Explained / Description

C3203 is a NPN silicon transistor available in TO-92 plastic package. It is a transistor with good features and electrical characteristics that makes it suitable to use in a wide variety of general purpose applications. It is mainly designed to use in low frequency power amplifiers and general switching. But it is not limited to these uses and can also be used for other applications.

Looking at the maximum ratings of the transistor the max collector-emitter voltage (VCEO) of the transistor is 30V, max collector-base voltage(VCBO) is 35V, max emitter-base voltage(VEBO) is 5V, max collector current is 80mA and max collector power dissipation is 600mW.

The electrical characteristics of the transistor are DC current gain of 100-320, transition frequency is 120MHz, Output capacitance is 13pF,  max collector-emitter saturation voltage is 0.5V, and collector cur off current is 100nA.

This transistor is available in two different versions according to hFE classification. Each version contains a single letter after the part number due to which we can determine the DC current gain or hFE of that transistor. If that letter is “O” then the hFE will be 100-200 and if that letter is “Y” then the hFE will be 160-320.


Where We Can Use it & How to Use

C3203 transistor is designed to use in low frequency power amplifiers and switching circuits. But as we have mentioned above it is not limited to only these uses or applications and can be used in a variety of other applications such as RF circuits around 100MHz, audio preamplifier circuits, and variety of general purpose applications. The detailed list of its applications can be found under the “Applications” heading below. Using procedure of this transistor is the same as we use any other BJT transistor.



Audio amplifier circuits

RF circuits around 100MHz

Audio preamplifier circuits

Switching circuits

Driver Circuits

Darlington pairs

Communication circuits

And variety of other general purpose applications.


Safe Operating Guidelines

To get long term performance with the transistor it is essential to operate it safely by not driving it to its absolute maximum limits or ratings and it is suggested to use it at least 20% below from its max ratings. So according to this rule, we will minus the 20% from its max ratings to get the actual limit of how much load we can put on it so it will run smoothly in the long run without getting weakening or damage. The maximum collector current of the transistor is 800mA therefore we will not put a load of more than 640mA, the maximum collector-emitter voltage is 30V, therefore, will not supply more than 24V to the load we are driving through this transistor, and for the storage and operating temperature of the transistor we have to maintain it between -55°C to 150°C.



To Download the datasheet just copy and paste the below link in your browser.
